Steam Boilers

Manufactured by MB-Steam in Cambridge, Tasmania

Big Ideas, Real Impact.

The MB range of Resistance Element Hot Water Boilers & Steam Boilers, together with Inline Heaters, Plant Ancillaries & Controls are manufactured in Australia by MB-STEAM Pty Ltd.

The MB range of Resistance Element Steam Boilers are designed and built to fully utilise the advantages of generating hot water and steam with electricity.

Get in Touch

Key Features

1

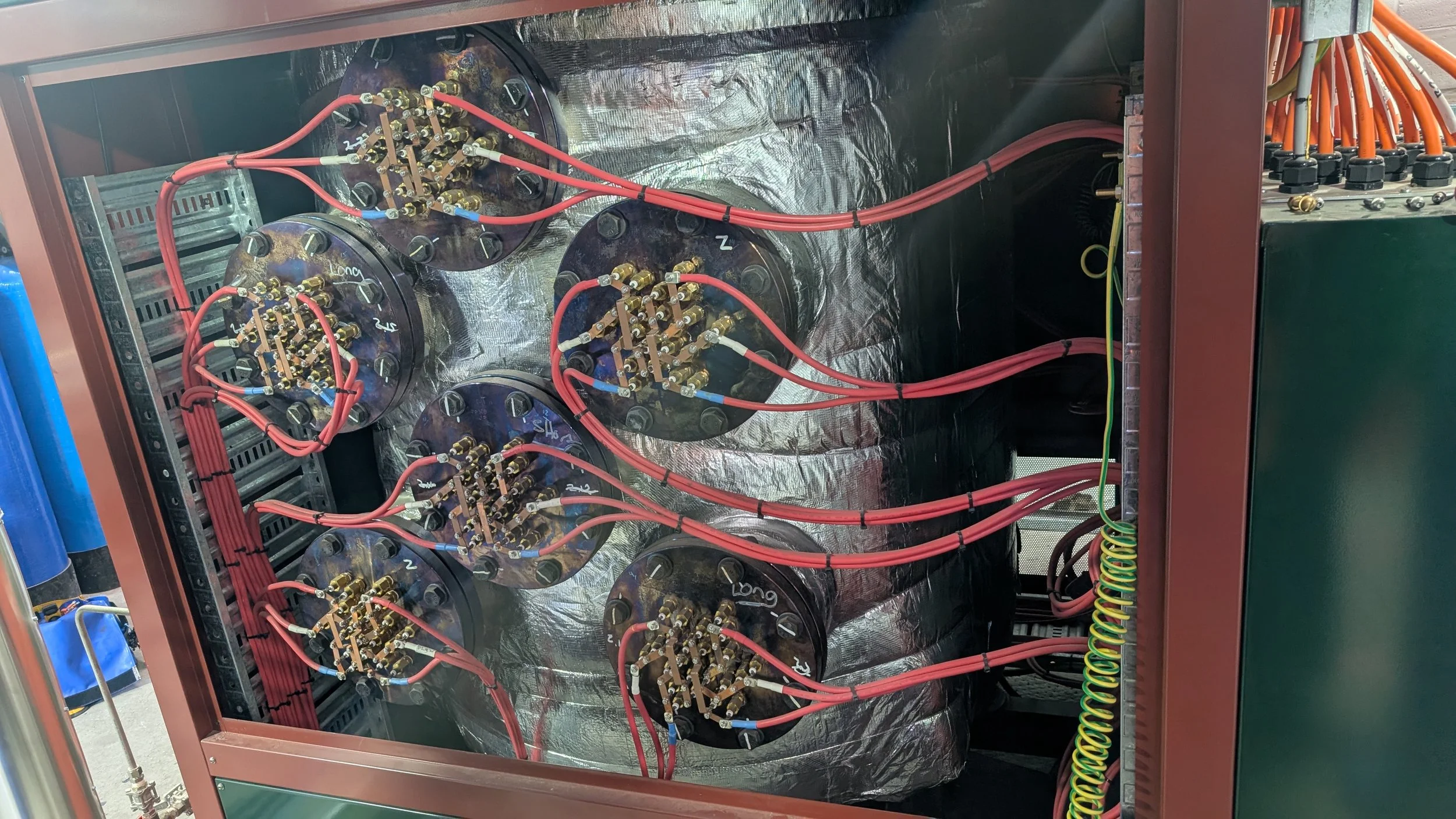

Incoloy sheathed immersion resistance elements with low Watt density for extended life. Specially designed compression fittings permit individual element replacement.
2

Step-controlled operation with cold start protection.
3

Optional SCR modulating control for finer temperature regulation.
4

Our boilers all conform to AS 2593 Boilers – Safety management and supervision systems, AS 1228 Pressure equipment – Boilers & AS/ NZS 61439 Low-voltage switchgear and control gear assemblies.
5

Each unit is designed and tailored to complement its process, real estate & functionality.
6

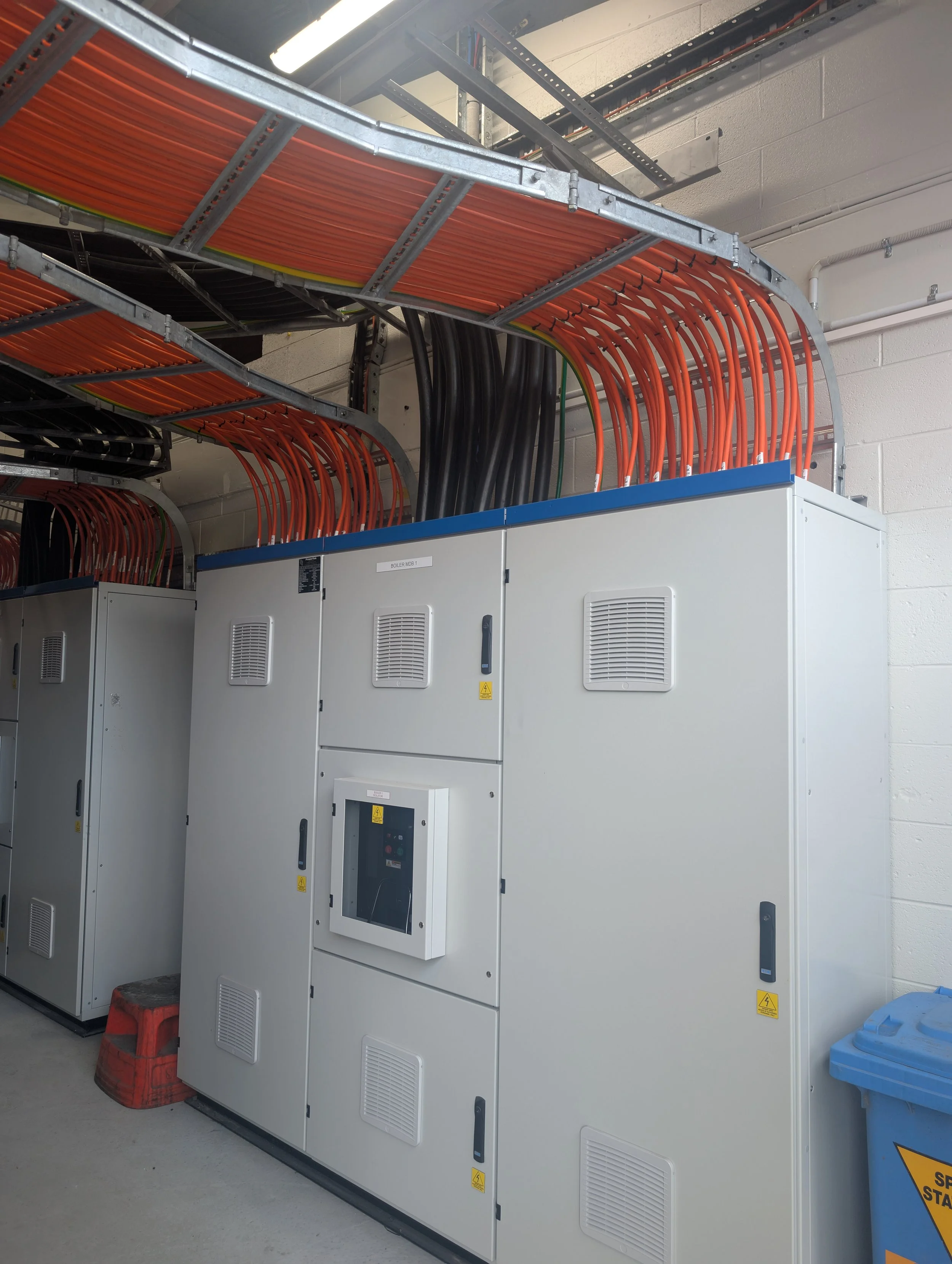

A diverse range of LV switch gear designs can be provided to incorporate protection, monitoring & control.
7

Non-standard formats available to suit client requirements while maintaining built-in safety & operating provisions.
8

MB Boilers have been engineered for safe operation in seismic environments.

Versatile by Design

MB-Steam boilers are engineered for flexibility — purpose-built to meet the unique requirements of each installation. Whether supplied as compact skid-mounted system complete with feedwater and control assemblies, or integrated within a larger plant-based design, each unit is tailored for performance, efficiency, and seamless operation.

Model Data

Rating Specifications



        Model
        Power (kW)
        Amps (3Ø) @415V
        Steps
        Pressure Rating (kPa)
        Elements (kW)
        Max Output from & at 100oC
+ Atmosphere (kg/hr)



        MB24-15
        108 to 144
        200
        2 to 4
        1000
        6/12
        230


        MB24-30
        162 to 288
        400
        4 to 8
        1000
        6/12
        460


        MB24-45
        306 to 432
        600
        6 to 12
        1000
        6/12
        690


        MB36-70
        450 to 720
        1000
        6 to 12
        1000
        10
        1150


        MB36-110
        750 to 1080
        1500
        9 to 18
        1000
        10
        1730


        MB48-130
        1080 to 1296
        1800
        9 to 18
        1000
        12
        2070


        MB48-170
        1332 to 1728
        2400
        12 to 24
        1000
        12
        2760




Dimensional Specifications



        Model
        Dimensions (mm)
        Steam Outlet (mm)


        L
        W
        H
        Element Clearance
        Approx. Weight (kg)



        MB24-15
        1050
        1200
        1350
        500
        750
        32


        MB24-30
        1050
        1200
        1650
        500
        850
        50


        MB24-45
        1050
        1200
        2250
        500
        1050
        50


        MB36-70
        1350/1500
        1500
        2200
        800
        1600
        50


        MB36-110
        1350/1500
        1500
        2650
        800
        1950
        65


        MB48-130
        1700/1900
        1800
        2750
        1100
        2450
        80


        MB48-170
        1700/1900
        1800
        3060
        1100
        2950
        80
