MB Series Electric Inline Heaters

  • Construction & Design

    ILH heaters utilise rugged Incoloy or stainless-steel sheathed elements, mounted via compression fittings that allow individual element removal for easy maintenance. Element watt density and pressure vessel construction are selected and tailored to suit the specific heating requirements of each application.

    For higher heating capacities, multiple heating chambers can be combined to achieve the required duty.

  • Controls

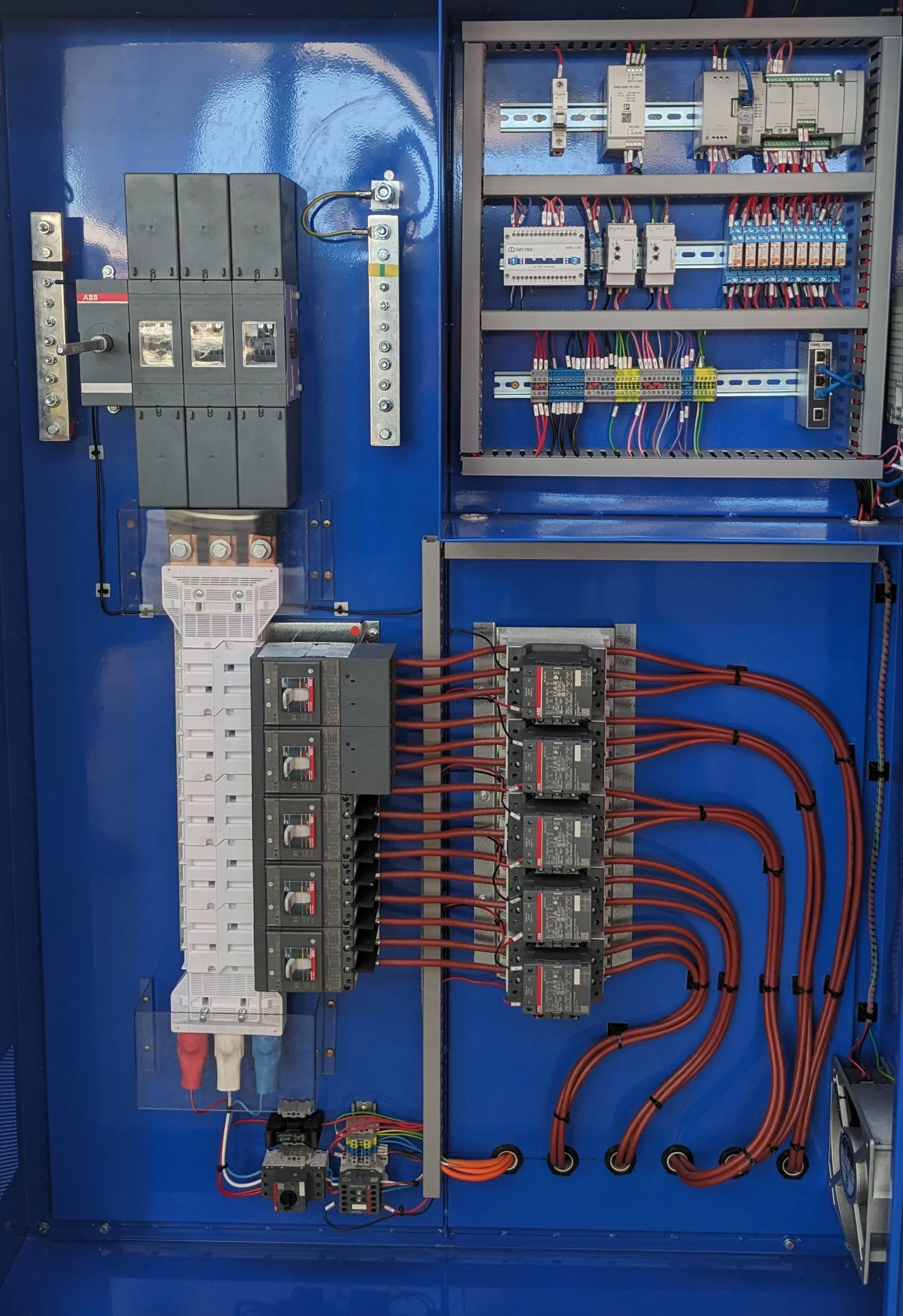

    Each heater is supplied with an integrated, cased electrical enclosure and switchboard. Control options include stepped control or fully-modulating SCR temperature control, allowing precise thermal management to match system demand.

  • Standards & Compliance

    Pressure vessels are designed and manufactured to comply with:

    AS 1228 – Pressure Equipment

    AS 2593 – Boilers & Unfired

    Pressure Vessels Each vessel is supplied with a Manufacturer’s Data Report. Switchboards are designed and built to meet client fault-level requirements and any project-specific options.

  • Customisation

    Every ILH unit is custom-built to suit the medium being heated. Watt densities, element configuration, and physical layout are engineered to match application needs. Units can be supplied as stand-alone heaters or integrated into a skid-mounted system for simplified installation.

Get in touch

Model Data

Model kW Rating at
415V		 Element Capacity
No x kW		 Dimensions (mm) Approx. Weight (kg)
L H W Element Clearance
ILH-327 10 3 x 3.33 800 300 150 650 50
ILH-339 15 3 x 5 1100 300 150 950 55
ILH-349 20 3 x 6.66 1350 300 150 1200 60
ILH-436 30 3 x 10 1200 400 530 900 160
ILH-445 36 3 x 12 1450 400 530 1200 185
ILH-636 60 6 x 10 1200 500 600 900 200
ILH-645 72 6 x 12 1450 500 600 1200 225
ILH-820 48 6 x 8 800 600 700 500 300
ILH-826 72 12 x 6 950 600 700 700 350
ILH-836 120 12 x 10 1200 600 700 900 375
ILH-845 144 12 x 12 1450 600 700 1200 400
ILH-852 144 24 x 6 1850 600 700 700 600
ILH-869 240 24 x 10 2150 600 700 900 700
ILH-889 288 24 x 12 2600 600 700 1200 750
ILH-1269 240 24 x 10 1200 900 800 900 800
ILH-1289 288 24 x 12 1450 900 800 1200 900
ILH-8138 360 36 x 10 2150 900 700 900 780
ILH-8158 480 48 x 10 2150 900 700 900 800
ILH-8178 576 48 x 12 2600 900 700 1200 900
